###BeginCaseStudy###
Testlet 1
Topic 3, Litware, Inc
Overview
Litware, Inc., is a manufacturing company located in North America.
The company has a main office and two branch offices. The main office is located in Chicago. The branch
offices are located in Baltimore and Los Angeles.
Existing Environment
Active Directory Environment
The network contains one Active Directory forest named litwareinc.com. Each office is configured as an Active
Directory site.
All domain controllers in the Los Angeles office run Windows Server 2008 R2. All domain controllers in the
Chicago office run Windows Server 2003 Service Pack 1 (SP1). All domain controllers in the Baltimore office
run Windows Server 2012.
All of the FSMO roles are located on a domain controller in the Baltimore office. All of the domain controllers
are configured as global catalog servers.
You have a distribution group for each department. The distribution groups contain all of the users in each
respective department.
Network Infrastructure
The servers in each office are configured as shown in the following table.
The Baltimore and Chicago offices have independent Internet connections. Internet connectivity for the Los
Angeles office is provided through Chicago.
Users frequently send large email messages to other users in the company. Recently, you increased the
maximum message size to 50 MB.
Planned Changes
The company plans to deploy a new Exchange Server 2013 infrastructure that will contain two Clients Access
servers and two Mailbox servers in the Chicago office. The servers will be configured as shown in the following
table.
All client connections to the Exchange Server organization will be routed through a hardware load balancer. The
name client.litwareinc.com will point to the virtual IP address of the hardware load balancer.
Once the transition to Exchange Server 2013 in the Chicago office is complete, all mail flow to and from the
Internet will be managed centrally through that office by using a Send connector that has the following
configurations:
Connector name: CH-to-Internet
Address space: *
Source servers: CH-EX2, CH-EX3
Cost: 10
###EndCaseStudy###
You are testing the planned implementation of Exchange Server 2013.
After you begin moving several mailboxes to Exchange Server 2013, you discover that users on the internal
network that have been moved are prompted repeatedly for their credentials when they run Microsoft Outlook.

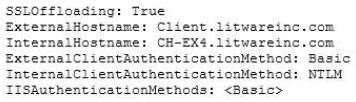

You run the Get-OutlookAnywhere cmdlet on CH-EX4, and receive the following output:
You need to prevent the internal users from being prompted for their credentials when they connect to their
mailbox by using Outlook.
Which property should you modify by using the Set-OutlookAnywhere cmdlet?
A.
IISAuthenticationMethods
B.
InternalHostname
C.
ExternalHostname
D.
ExternalClientAuthenticationMethod
E.
InternalClientAuthenticationMethod
Explanation:
InternalClientAuthenticationMethod is NTLM
Windows Challenge/Response (NTLM) is the authentication protocol used on networks that include systems
running the Windows operating system and on stand-alone systems.
NTLM credentials are based on data obtained during the interactive logon process and consist of a domain
name, a user name, and a one-way hash of the user’s password.
NEED TO CONVERT THE INTERNALCLIENTAUTHENTICATIONMETHOD TO BASIS NOT NTLM IN
ORDER TO FIX THE ISSUE.
USE IISAUTHENTICATIONMETHODS PARAMETER IN ORDER TO ACHIEVE THIS.
Set-OutlookAnywhere
Use the Set-OutlookAnywhere cmdlet to modify the properties on a computer running Microsoft Exchange
Server 2013 enabled for Microsoft Outlook Anywhere.EXAMPLE 1
This example sets the client authentication method to NTLM for the /rpc virtual directory on the Client Access
server CAS01.
Set-OutlookAnywhere -Identity:CAS01\\rpc (Default Web Site) -ExternalClientAuthenticationMethod:Ntlm
PARAMETERS
The IISAuthenticationMethods parameter specifies the authentication method enabled on the /rpc virtual
directory in Internet Information Services (IIS).
You can set the virtual directory to allow Basic authentication or NTLM authentication.
Alternatively, you can also set the virtual directory to allow both Basic and NTLM authentication. All other
authentication methods are disabled.
You may want to enable both Basic and NTLM authentication if you’re using the IIS virtual directory with
multiple applications that require different authentication methods.
The InternalHostname parameter specifies the internal hostname for the Outlook Anywhere virtual directory.
The ExternalHostname parameter specifies the external host name to use in the Microsoft Outlook profiles for
users enabled for Outlook Anywhere.
The ExternalClientAuthenticationMethod parameter specifies the authentication method used for external client
authentication. Possible values include:
Basic
Digest
Ntlm
Fba
WindowsIntegrated
LiveIdFba
LiveIdBasic
LiveIdNegotiate
WSSecurity
Certificate
NegoEx
OAuth
Adfs
Kerberos
Negotiate
Misconfigured
The InternalClientAuthenticationMethod parameter
specifies the authentication method used for internal client authentication. Possible values include:
Basic
Digest
Ntlm
Fba
WindowsIntegrated
LiveIdFba
LiveIdBasic
LiveIdNegotiate
WSSecurity
Certificate
NegoEx
OAuth
Adfs
Kerberos
Negotiate
Misconfigured
Set-OutlookAnywhere: Exchange 2013 Help
