Which virtual machine setting should you configure for VM2?

Your network contains a server named Server1 that runs Windows Server 2012 R2.Server1 has the
Hyper-V server role installed.
Server1 hosts four virtual machines named VM1, VM2, VM3, and VM4.

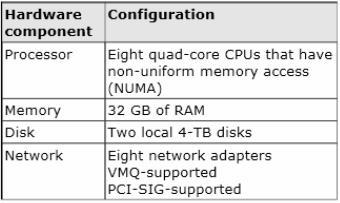

Server1 is configured as shown in the following table.

You install Windows Server 2012 R2 on VM2 by using Windows Deployment Services (WDS).
You need to ensure that the next time VM2 restarts, you can connect to the WDS server by using
PXE.
Which virtual machine setting should you configure for VM2?

Your network contains a server named Server1 that runs Windows Server 2012 R2.Server1 has the
Hyper-V server role installed.
Server1 hosts four virtual machines named VM1, VM2, VM3, and VM4.
Server1 is configured as shown in the following table.

You install Windows Server 2012 R2 on VM2 by using Windows Deployment Services (WDS).
You need to ensure that the next time VM2 restarts, you can connect to the WDS server by using
PXE.
Which virtual machine setting should you configure for VM2?

A.
NUMA topology

B.
Resource control

C.
resource metering

D.
virtual Machine Chimney

E.
The VLAN ID

F.
Processor Compatibility

G.
The startup order

H.
Automatic Start Action

I.
Integration Services

J.
Port mirroring
K.
Single-root I/O virtualization

Explanation:
Configure the BIOS of the computer to enable PXE boot, and set the boot order so that it is booting
from the network is first.
References: http://technet.microsoft.com/en-us/library/cc766320(v=ws.10).aspx
Exam Ref 70-410, Installing and Configuring Windows Server 2012 R2, Chapter 3: Configure Hyper-V,
Objective 3.1: Create and Configure virtual machine settings, p.144
Training Guide: Installing and Configuring Windows Server 2012 R2: Chapter 7: Hyper-V
Virtualization, Lesson 2: Deploying and configuring virtual machines, p.335



Leave a Reply 6

Your email address will not be published. Required fields are marked *

seventeen + sixteen =


ArmedNDangerous

ArmedNDangerous

This question was on the exam

kamrul

kamrul

When did you set for exam? I need latest dumps for this exam can you please give me latest dumps. My email [email protected]

kamrul

kamrul

I will sit for exam on 19 jan

Gilbert found two flowers on the moon.

Gilbert found two flowers on the moon.

G – Put the legacy network adapter first on the start up order.

Alf Stewart

Alf Stewart

Generation 2 VM’s can PXE boot from a standard virtual NIC, Gen 1’s need the legacy nic.
