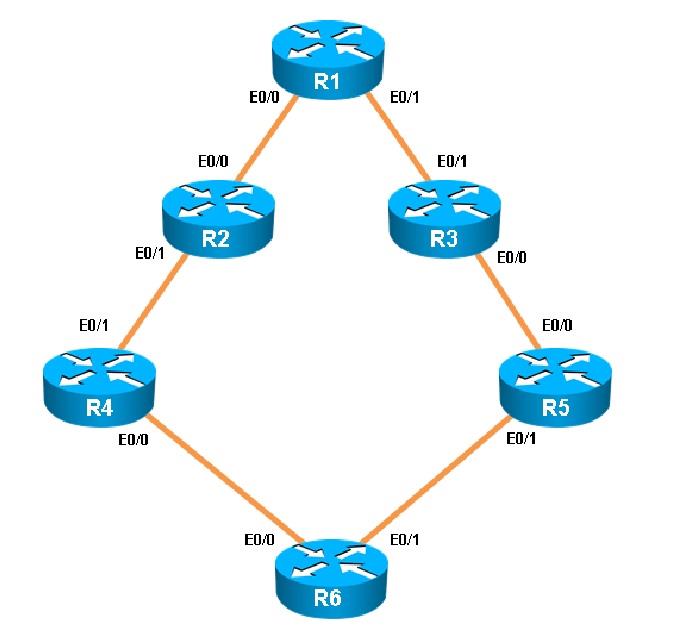

You have been asked to evaluate how EIGRP is functioning in a customer network.
What is the advertised distance for the 192.168.46.0 network on R1?
A.
333056
B.
1938688
C.
1810944
D.
307456
What is the advertised distance for the 192.168.46.0 network on R1?
You have been asked to evaluate how EIGRP is functioning in a customer network.
What is the advertised distance for the 192.168.46.0 network on R1?
Use a command;
R1#show ip eigrp topology
Find a prefix you are interested in. This case 192.168.46.0, looking like this;
P 192.168.46.0/24, 1 successors, FD is 123456
via 192.168.32.2 (1234567/12345), Ethernet0/1
Question is about the advertised distance (AD) or reported distance(RD), therms are synonymous. That is a second number in parentheses, 12345 in this case.
Yes, Marek is right. The administrative distance is the 2nd number. The first number is the total patch cost. For this question, 1810944 is wrong, the answer should be 333056.
I am really confused by this question. I looked at few websites and PDFs and almost I got 50/50 saying 333056 & 1810944. I would love to know the right answer please. any one to clarify?
333056 i think
(4/July/2017 Updated) New 300-101 Exam Questions:
NEW QUESTION 379
What show command is used here?
TCB Local Address Foreign Address (state)
6523A4FC 10.1.25.3.11000 10.1.25.3.23 ESTAB
65239A84 10.1.25.3.23 10.1.25.3.11000 ESTAB
653FCBBC *.1723 *.* LISTEN
A. show tcp brief
B. show tcp brief all
C. show tcp brief numeric
D. show tcp brief ip
Answer: C
NEW QUESTION 380
You need the IP address of the devices with which the router has established an adjacency. Also, the retransmit interval and the queue counts for the adjacent routers need to be checked. What command will display the required information?
A. show ip eigrp adjacency
B. show ip eigrp topology
C. show ip eigrp interfaces
D. show ip eigrp neighbor
Answer: D
NEW QUESTION 381
You get a call from a network administrator who tells you that he typed the following into his router:
Router(config)#router ospf 1
Router(config-router)#network 10.0.0.0 255.0.0.0 area 0
He tells you he still can’t see any routes in the routing table. What configuration error did the administrator make?
A. The wildcard mask is incorrect
B. The OSPF area is wrong
C. The OSPF process ID is incorrect
D. The AS configuration is wrong
Answer: A
NEW QUESTION 382
If routers in a single area are configured with the same priority value, what value does a router use for the OSPF Router ID in the absence of a loopback interface?
A. The lowest IP address of any physical interface
B. The highest IP address of any physical interface
C. The lowest IP address of any logical interface
D. The highest IP address of any logical interface
Answer: B
NEW QUESTION 383
Where are EIGRP successor routes stored?
A. In the routing table only
B. In the neighbor table only
C. In the topology table only
D. In the routing table and the topology table
E. In the routing table and the neighbor table
Answer: D
NEW QUESTION 384
Which location is traffic from IP SLAs?
A. core edge
B. access edge
C. WAN edge
D. Distribution edge
E. User edge
Answer: C
NEW QUESTION 385
Which option is invalid redistribute from EIGRP into OSPF?
A. ACL
B. tag
C. metric
D. route map
Answer: A
NEW QUESTION 386
……
P.S. These New 300-101 Exam Questions Were Just Updated From The Real 300-101 Exam, You Can Get The Newest 300-101 Dumps In PDF And VCE From — http://www.passleader.com/300-101.html (403q VCE and PDF)
Good Luck!
What’s more, part of that new 403Q 300-101 dumps are available here:
https://drive.google.com/open?id=0B-ob6L_QjGLpZEE0S2YxR3ZMUWs
Best Regards!
Would love to know the correct answer for this question please…what is the advertised distance for 192.168.46.0 on R1….the correct one between 333056 and 1810944. Thank you.
1810944 is wrong. That is the feasible distance. Since in the actual exam “show ip eigrp topology” command doesn’t work, you need to go to the next router which is being used as the next hop and do a show ip route. The FD of the 192.168.46.0 will be the AD it will send to R1 i think. Let me know your thoughts!!
the answer 1810944 is wrong. its asking what is the AD of the route on R1.
1810944 is R1 FD you need to look in EIGRP topology table and from there you will find the RD
in the output of the topology table it will be displayed as
….
via …
New 300-101 Exam Questions and Answers (2/Nov/2017 Updated):
NEW QUESTION 470
What is the minimum privilege level to enter all commands in usermode?
A. Level14
B. Level0
C. Level1
D. Level15
Answer: C
NEW QUESTION 471
Which two statements about password-protecting device access are true? (Choose two)
A. The more system:running-config command displays encrypted passwords in clear text.
B. The service password-encryption command forces a remote device to encrypt the password.
C. A network administrator can recover an encrypted password.
D. The privilege level command controls the commands a specific user can execute.
E. The password can be encrypted in the running configuration.
Answer: DE
NEW QUESTION 472
Frame Relay LMI autosense. Which statements are true? (Choose two.)
A. Line should be up and protocol should be down.
B. Protocol must be up.
C. It only works on DTEs.
D. It only works on DCEs.
Answer: AC
NEW QUESTION 473
Which two protocols can cause TCP starvation? (Choose two.)
A. TFTP
B. SNMP
C. SMTP
D. HTTPS
E. FTP
Answer: AB
NEW QUESTION 474
Refer to the exhibit. How can you configure a second export destination for IP address 192.168.10.1?
configure terminal
ip flow-export destination 192.168.10.1 9991
ip flow-export version 9
A. specify a different TCP port
B. specify a different UDP port
C. specify a VRF
D. configure a version 5 flow-export to the same destination
E. specify a different flow ID
Answer: C
NEW QUESTION 475
Which value does Frame Relay use to identify a connection between a DTE and DCE?
A. DLCI
B. IP address
C. MAC address
D. VLAN ID
Answer: A
NEW QUESTION 476
Which two options are limitations of Stateful NAT64? (Choose two.)
A. it is unable to route VRF traffic
B. it is unable to route multicast traffic
C. it supports FTP traffic only with an ALG
D. it supports DNS64 only
E. layer 4 supports TCP only
Answer: AB
NEW QUESTION 477
If you want to migrate an IS-IS network to another routing protocol with ……? (Choose two.)
A. UDP
B. Internal BGP
C. TCP/IP
D. EIGRP
E. OSPF
F. RIP
Answer: DE
NEW QUESTION 478
IP CEF load-sharing options ……? (Choose three.)
A. Tunnel
B. Universal
C. Include-ports
D. Source
E. Destination
Answer: ABC
NEW QUESTION 479
……
P.S. These New 300-101 Exam Questions Were Just Updated From The Real 300-101 Exam, You Can Get The Newest 300-101 Dumps In PDF And VCE From — https://www.passleader.com/300-101.html (489q VCE and PDF)
Good Luck!
By the way, new 489Q 300-101 dumps are available here FYI:
https://drive.google.com/open?id=0B-ob6L_QjGLpZEE0S2YxR3ZMUWs
Best Regards!
