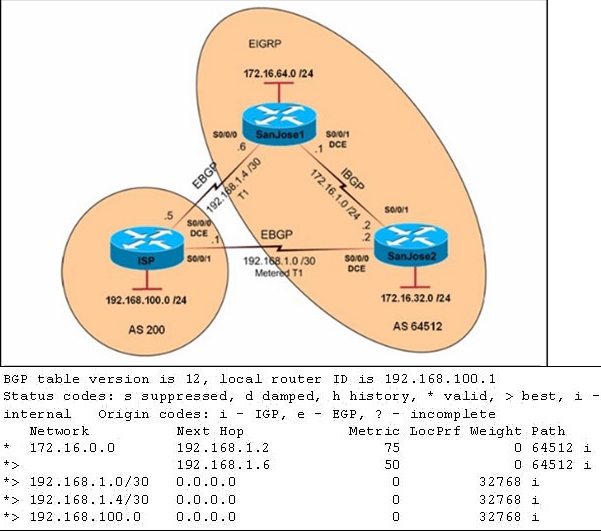

Refer to the exhibit.
On the basis of the information in the exhibit, which two statements are true? (Choose two.)
A.
When traffic is sent from the ISP to autonomous system 64512, the traffic will be
forwarded to SanJose2 because of the higher MED value of SanJose2.
B.
The serial 0/0/1 interface on the ISP router has been configured with the set metric 50
command.
C.
The output was generated by entering the show ip bgp command on the SanJose1 router.
D.
The output was generated by entering the show ip bgp command on the ISP router.
E.
The serial 0/0/1 interface on the ISP router has been configured with the set metric 75
command.
F.
When traffic is sent from the ISP to autonomous system 64512, the traffic will be
forwarded to SanJose1 because of the lower MED value of SanJose1.
Explanation:
The “show ip route bgp” command will display any BGP-learned routes that make it into the
IP routing table, the command “show ip bgp” is required to display the contents of the actual
BGP routing table. This output was seen on ISP because the local router ID is192.168.100.1 (ISP). Since we know that this output must have been seen by ISP, we know
the serial 0/0/1 interface has been configured with a metric of 75, as this is the metric to the
peer with IP address 192.168.1.2 (the other side of the serial 0/0/1 interface).
code of the page HIGHLIGHTS F> not E>
but the explanation clearly shows that E was the intended “correct” answer.
F is bogus…MED is not mentioned, and would NEVER be considered since the Metric is different for the two paths.
yeah, you’re dumb
New 300-101 Exam Questions Updated Recently (2/Nov/2017):
NEW QUESTION 461
Which two protocols can cause TCP starvation? (Choose two.)
A. TFTP
B. SNMP
C. SMTP
D. HTTPS
E. FTP
Answer: AB
NEW QUESTION 462
Which two options are limitations of Stateful NAT64? (Choose two.)
A. it is unable to route VRF traffic
B. it is unable to route multicast traffic
C. it supports FTP traffic only with an ALG
D. it supports DNS64 only
E. layer 4 supports TCP only
Answer: AB
NEW QUESTION 463
Refer to the exhibit. How can you configure a second export destination for IP address 192.168.10.1?
configure terminal
ip flow-export destination 192.168.10.1 9991
ip flow-export version 9
A. specify a different TCP port
B. specify a different UDP port
C. specify a VRF
D. configure a version 5 flow-export to the same destination
E. specify a different flow ID
Answer: C
NEW QUESTION 464
Which value does Frame Relay use to identify a connection between a DTE and DCE?
A. DLCI
B. IP address
C. MAC address
D. VLAN ID
Answer: A
NEW QUESTION 465
If you want to migrate an IS-IS network to another routing protocol with ……? (Choose two.)
A. UDP
B. Internal BGP
C. TCP/IP
D. EIGRP
E. OSPF
F. RIP
Answer: DE
NEW QUESTION 466
IP CEF load-sharing options ……? (Choose three.)
A. Tunnel
B. Universal
C. Include-ports
D. Source
E. Destination
Answer: ABC
NEW QUESTION 467
What is the minimum privilege level to enter all commands in usermode?
A. Level14
B. Level0
C. Level1
D. Level15
Answer: C
NEW QUESTION 468
Which two statements about password-protecting device access are true? (Choose two)
A. The more system:running-config command displays encrypted passwords in clear text.
B. The service password-encryption command forces a remote device to encrypt the password.
C. A network administrator can recover an encrypted password.
D. The privilege level command controls the commands a specific user can execute.
E. The password can be encrypted in the running configuration.
Answer: DE
NEW QUESTION 469
Frame Relay LMI autosense. Which statements are true? (Choose two.)
A. Line should be up and protocol should be down.
B. Protocol must be up.
C. It only works on DTEs.
D. It only works on DCEs.
Answer: AC
NEW QUESTION 470
Which two protocols can cause TCP starvation? (Choose two.)
A. TFTP
B. SNMP
C. SMTP
D. HTTPS
E. FTP
Answer: AB
NEW QUESTION 471
……
