DRAG DROP

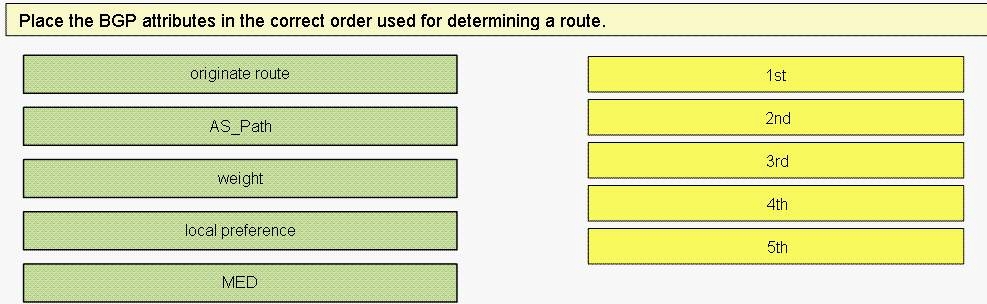

Place the BGP attributes in the correct order used for determining a route.
Answer:

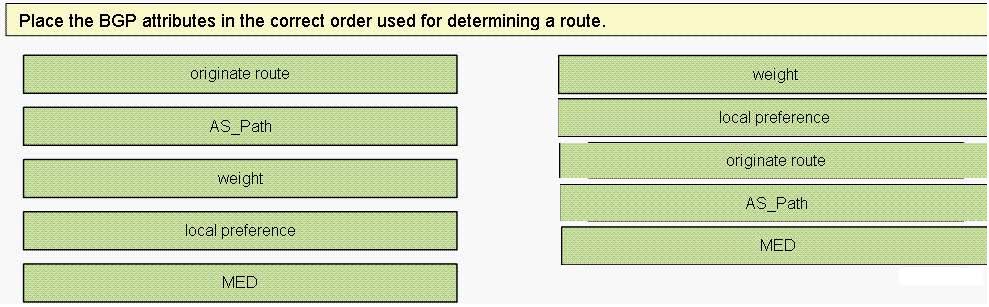

Place the BGP attributes in the correct order used for determining a route.
DRAG DROP
Place the BGP attributes in the correct order used for determining a route.
WRONG :
AS_PATH before ORIGIN
http://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13753-25.html
1.Prefer the path with the highest WEIGHT.
Note: WEIGHT is a Cisco-specific parameter. It is local to the router on which it is configured.
2.Prefer the path with the highest LOCAL_PREF.
Note: A path without LOCAL_PREF is considered to have had the value set with the bgp default local-preference command, or to have a value of 100 by default.
3.Prefer the path that was locally originated via a network or aggregate BGP subcommand or through redistribution from an IGP.
Local paths that are sourced by the network or redistribute commands are preferred over local aggregates that are sourced by the aggregate-address command.
4.Prefer the path with the shortest AS_PATH.
Note: Be aware of these items:
◦This step is skipped if you have configured the bgp bestpath as-path ignore command.
◦An AS_SET counts as 1, no matter how many ASs are in the set.
◦The AS_CONFED_SEQUENCE and AS_CONFED_SET are not included in the AS_PATH length.
5.Prefer the path with the lowest origin type.
Note: IGP is lower than Exterior Gateway Protocol (EGP), and EGP is lower than INCOMPLETE.
6.Prefer the path with the lowest multi-exit discriminator (MED).
“originate route” is retarded. wtf does that mean? It should say “locally originated route” ya morons.
N WLLA OMNI
Origin route is (2nd L) is before As_Path (A) answer displayed is correct.
New 300-101 Exam Questions Updated Recently (2/Nov/2017):
NEW QUESTION 460
Which two protocols can cause TCP starvation? (Choose two.)
A. TFTP
B. SNMP
C. SMTP
D. HTTPS
E. FTP
Answer: AB
NEW QUESTION 461
Which two protocols can cause TCP starvation? (Choose two.)
A. TFTP
B. SNMP
C. SMTP
D. HTTPS
E. FTP
Answer: AB
NEW QUESTION 462
Which two options are limitations of Stateful NAT64? (Choose two.)
A. it is unable to route VRF traffic
B. it is unable to route multicast traffic
C. it supports FTP traffic only with an ALG
D. it supports DNS64 only
E. layer 4 supports TCP only
Answer: AB
NEW QUESTION 463
Refer to the exhibit. How can you configure a second export destination for IP address 192.168.10.1?
configure terminal
ip flow-export destination 192.168.10.1 9991
ip flow-export version 9
A. specify a different TCP port
B. specify a different UDP port
C. specify a VRF
D. configure a version 5 flow-export to the same destination
E. specify a different flow ID
Answer: C
NEW QUESTION 464
Which value does Frame Relay use to identify a connection between a DTE and DCE?
A. DLCI
B. IP address
C. MAC address
D. VLAN ID
Answer: A
NEW QUESTION 465
If you want to migrate an IS-IS network to another routing protocol with ……? (Choose two.)
A. UDP
B. Internal BGP
C. TCP/IP
D. EIGRP
E. OSPF
F. RIP
Answer: DE
NEW QUESTION 466
IP CEF load-sharing options ……? (Choose three.)
A. Tunnel
B. Universal
C. Include-ports
D. Source
E. Destination
Answer: ABC
NEW QUESTION 467
What is the minimum privilege level to enter all commands in usermode?
A. Level14
B. Level0
C. Level1
D. Level15
Answer: C
NEW QUESTION 468
Which two statements about password-protecting device access are true? (Choose two)
A. The more system:running-config command displays encrypted passwords in clear text.
B. The service password-encryption command forces a remote device to encrypt the password.
C. A network administrator can recover an encrypted password.
D. The privilege level command controls the commands a specific user can execute.
E. The password can be encrypted in the running configuration.
Answer: DE
NEW QUESTION 469
Frame Relay LMI autosense. Which statements are true? (Choose two.)
A. Line should be up and protocol should be down.
B. Protocol must be up.
C. It only works on DTEs.
D. It only works on DCEs.
Answer: AC
NEW QUESTION 470
……
